Hettich Grant Bi-fold 50 Hardware and Track, Doors 50 Lbs. per panel, 2 - 4 Panel Applications

Hettich Grant Bi-fold 50 Hardware and Track, Doors 50 Lbs. per panel, 2 - 4 Panel Applications
Hettich

This item has been discontinued - For similar item see our Hager 9570RC Bi-Fold Sliding Door Hardware



See tabs below for additional information
    • SKU
      HT1135235
    Call for price!
    845-388-1300

    This item has been discontinued - For similar item see our Hager 9570RC Bi-Fold Sliding Door Hardware


    Product Options:

    • 2 door set for 1 way doors with 2 panels.
    • 4 door set for 2 way doors with 2 panels on each side.

    2 Door Set Includes:

    • (1 ea.) Single Track 50E

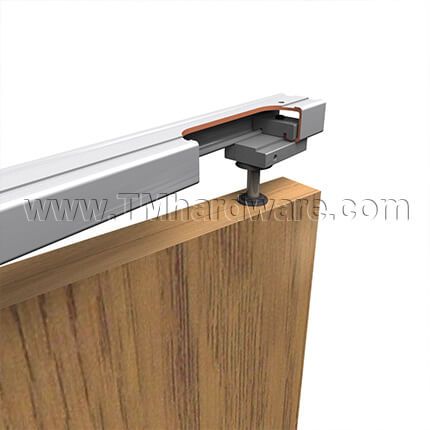

    • (1 ea.) Pivot Plate Assembly
    • (1 ea.) Carrier 50E with quick release top plate
    • (1 ea.) Plunger Spring Assembly
    • (1 ea.) Floor Cam Assembly
    • (1 ea.) Bi-fold Hinge Set 2646
    • All necessary screws

    4 Door Set Includes:

    • (2 ea.) Single Track 50E
    • (2 ea.) Pivot Plate Assembly
    • (2 ea.) Carrier 50E with quick release top plate
    • (2 ea.) Plunger Spring Assembly
    • (2 ea.) Floor Cam Assembly
    • (2 ea.) Bi-fold Hinge Set 2646
    • All necessary screws

    Track Length: 2 door bi-fold set available in 36" track length and 48" track length. 4 door bi-fold set available in 48", 60", 72" and 96" track lengths. For longer track applications, order hardware set and track separately.

    Applications: Light duty folding door system used in top hung applications for residential and commercial applications. Can be used in light weight bi-fold door applications. Ideal for closet doors. For full application options see product options tab.

    Door Weight: For doors weighing up to 50 Lbs. (23 Kg.) per panel in bi-fold applications and 30 Lbs. (14 kg.) in multi-fold applications.

    Door Thickness: For door panels 3/4" (19 mm) - 1 3/4" (44.4 mm) thick.

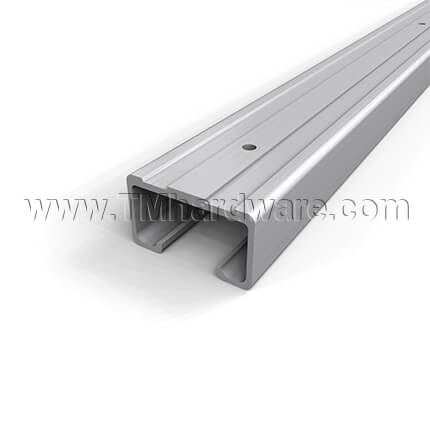

    Track: Extruded Aluminum box track with pre-drilled holes.

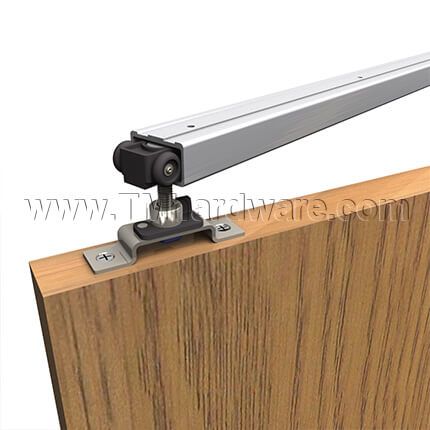

    Carrier: Ball bearing carrier with 4 wheels for smooth and long lasting operation.

    Track Mounting: Track is mounted to header.

    Carrier Mounting: Carriers are mounted to the top of the door.

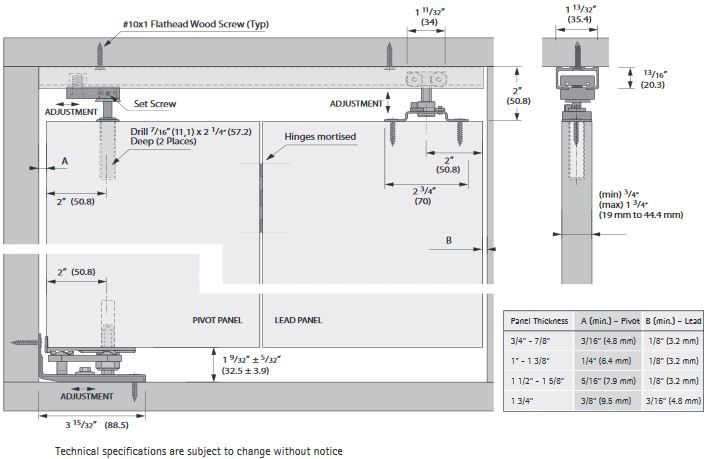

    Headroom: 1 27/32" (46.8 mm) minimum - 2 5/32" (54.8 mm) maximum.

    Features:

    • Doors fold flat for easy access.
    • Unique design keeps door in hold open or hold closed position.

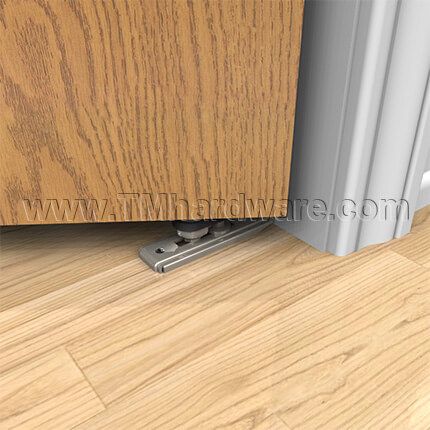

    • Floor cam functions as marking template to keep top and bottom holes aligned, no measuring or floor guide needed.

    Certifications: Meets and/or exceeds ANSI/BHMA standards.

    Optional Components: Bottom Guide Channel (1222), Guide Roller (1221). To order, please contact us or call our office at (845) 388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For heavier door applications, see our Hettich Grant BF150 Bifold Door Sets.

      • SKU
        HT1135235
    • QuickShip
      No
    • Manufacturer
      Hettich
    • MPN
      1135235; 1135236; 1135237; 1135238; 1135239; 1135240
    • Length
      36" Track - 2 Door Set, 48" Track - 2 Door Set, 48" Track - 4 Door Set, 60" Track - 4 Door Set, 72" Track - 4 Door Set, 96" Track - 4 Door Set

    See below for full product options. To order please contact us or call our office at 845-388-1300.

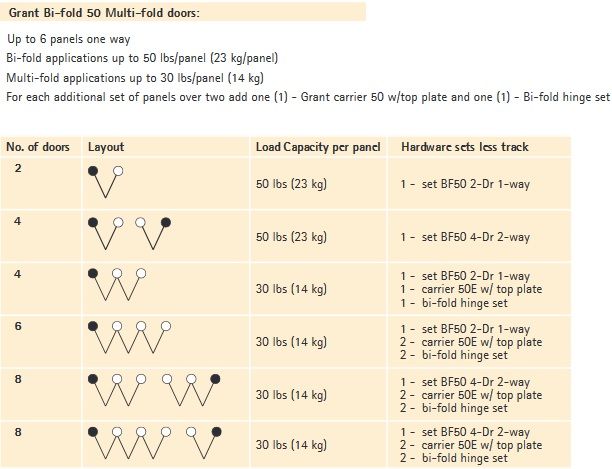

    Hettich Grant BF50 Product Options
